Nature's Generator 125A Automatic Transfer Switch Overview
The Nature's Generator 125A Automatic Transfer Switch is a high-capacity, whole-home ATS designed to automatically detect grid outages and switch your home to backup power without any manual intervention. With a 125A bus bar, support for 24 to 48 circuit spaces, and compatibility with solar generators, battery backup systems, grid-tie inverters, and gas generators, this is one of the most versatile and capable automatic transfer switches available for residential and light commercial installations in 2026. Its NEMA 3R-rated enclosure, AC coupling support, and UL 1008 certification make it a complete grid-integration solution for serious home energy systems.
Key Features and Benefits
- Automatic Grid-Loss Detection and Switching: Monitors utility power continuously and transfers to backup power automatically the moment an outage is detected, with no manual action required from the homeowner.
- 125A Bus Bar with Up to 48 Circuit Spaces: Rated at 125A with 24 standard circuit spaces expandable to 48 using tandem breakers, providing coverage for virtually any residential or light commercial load profile.
- Grid-Tie Inverter Compatible with AC Coupling: Creates a parallel power path for grid-tie solar inverters so they continue operating during outages, allowing stored solar energy to flow through the ATS to your home circuits and maximizing renewable energy utilization even when the grid is down.
- Broad System Compatibility: Works with solar generators, battery backup systems, grid-tie inverters, and gas generators, and supports 120V, 120/240V, and 120/208V systems including AFCI and GFCI breakers.
- Backup Power Override Option: The ATS does not have to automatically switch back to utility power once it is restored, allowing you to remain on backup power when preferred for energy savings or other operational reasons.
- NEMA 3R-Rated Weatherproof Enclosure: Engineered to withstand rain, dust, and harsh outdoor conditions, making it suitable for both indoor and outdoor installations in any climate.

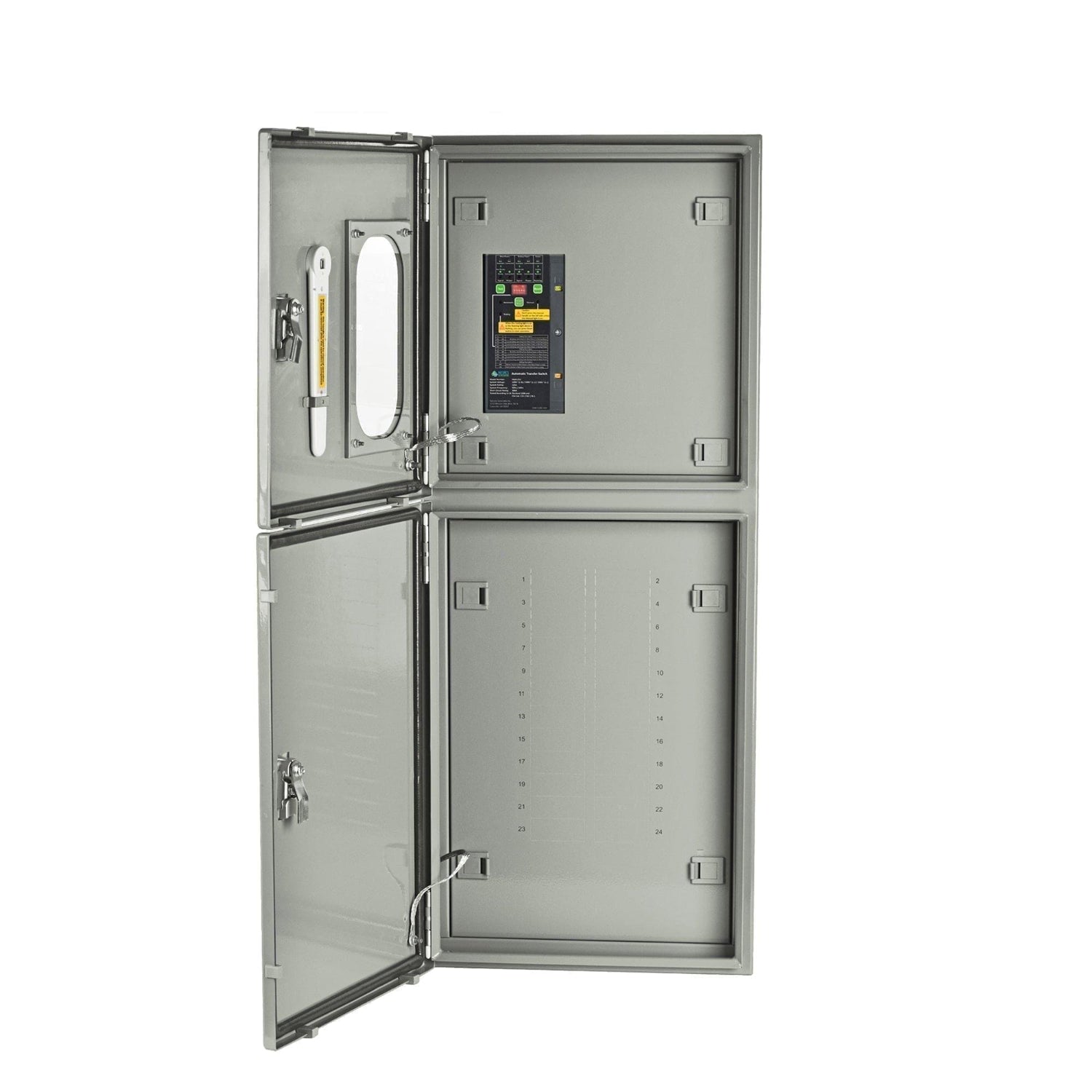

- Centralized Control Console with Manual Override: Features an integrated control panel for system monitoring, functional testing, and manual power source override for maintenance or user preference scenarios.
- UL 1008 and CAN/CSA C22.2 No. 178.1 Certified: Independently tested and certified to meet rigorous safety and performance standards, ensuring code-compliant installation in residential and commercial applications.
Who Is This For?
The 125A Automatic Transfer Switch is the right choice for homeowners and property owners who want whole-home automatic backup power integration without manual switching during an outage. It is particularly well-suited for households with existing grid-tied solar installations looking to add battery backup and keep their panels operational during grid failures, and for anyone building a comprehensive home energy independence system with a Nature's Generator power station or compatible battery backup system. Its large circuit capacity and AC coupling capability also make it an excellent fit for light commercial applications and off-grid properties with significant power loads.
Full Technical Specifications
| Type | Automatic Transfer Switch (ATS) |
|---|---|
| Amperage Rating | 125A |
| Bus Bar Rating | 125A |
| Circuit Spaces | 24 standard, expandable to 48 with tandem breakers |
| Voltage Compatibility | 120V, 120/240V, 120/208V |
| Breaker Compatibility | AFCI and GFCI compatible |
| AC Coupling | Yes, grid-tie inverter compatible with parallel power path |
| Enclosure Rating | NEMA 3R (indoor and outdoor) |
| Compatible Systems | Solar generators, battery backup systems, grid-tie inverters, gas generators |
| Certifications | UL 1008, CAN/CSA C22.2 No. 178.1 |
Frequently Asked Questions
What does the Nature's Generator 125A Automatic Transfer Switch do?
It automatically detects when utility power is lost and switches your home or property to a connected backup power source, such as a battery backup system or generator, without requiring any manual action. It also creates a parallel power path for grid-tie solar inverters so they can continue operating and sending power to your home through the ATS during an outage.
How many circuits can the Nature's Generator 125A ATS support?
The 125A ATS has 24 standard circuit spaces and can be expanded to 48 circuit spaces using tandem breakers, providing enough coverage for most residential and light commercial electrical panels.
Can the Nature's Generator 125A ATS work with solar panels and grid-tie inverters?
Yes. The 125A ATS supports AC coupling, which means it creates a parallel power path for existing grid-tie solar inverters. This allows your solar panels to continue generating power during an outage and route that energy through the ATS to your home circuits and battery backup system.
Does the Nature's Generator 125A Automatic Transfer Switch arrive ready to install?
Yes. The unit arrives ready for installation with the control console and enclosure included. Professional electrical installation by a licensed electrician is required to ensure safe, code-compliant integration with your home or property's main electrical panel.
Does Generator Vault offer financing for the Nature's Generator 125A Automatic Transfer Switch?
Yes. Generator Vault offers flexible financing options so you can get powered up today and pay over time. Visit our financing page for details.
Warranty Information
All products sold at Generator Vault come backed by the manufacturer warranty. We also stand behind every purchase with our customer-first support team. If you experience any issues, contact us at 1-904-206-8588 or visit our Warranty Policy page for full details.
Why Buy from Generator Vault?
At Generator Vault, we make it easy to get the right power solution at the best price. Every order ships free with no sales tax, and our Low Price Guarantee means you never overpay. Shop with confidence knowing our expert team is available Mon-Sat 9am-6pm PST to answer your questions. Ready to power up? Explore financing options or contact us today.
